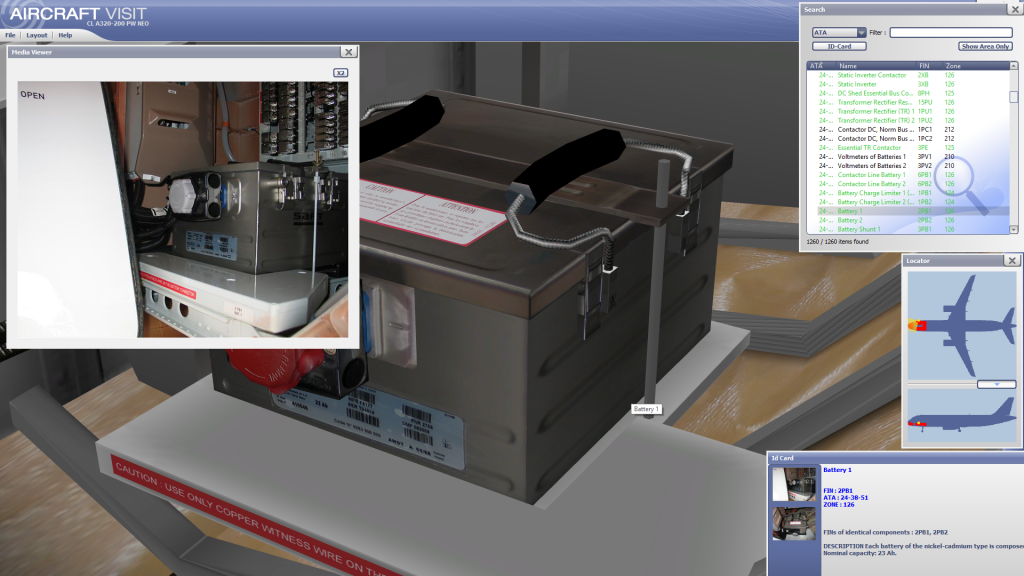

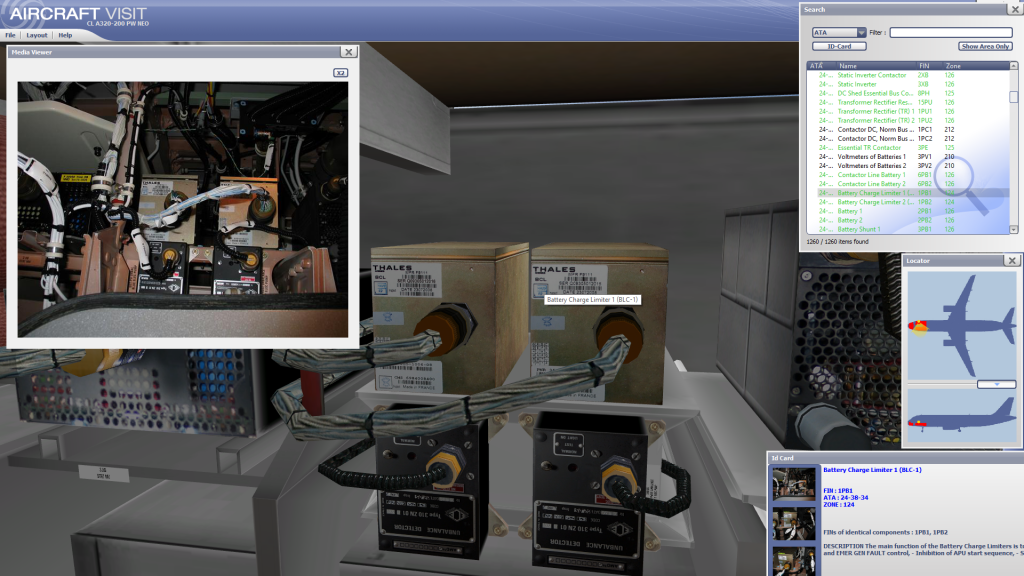

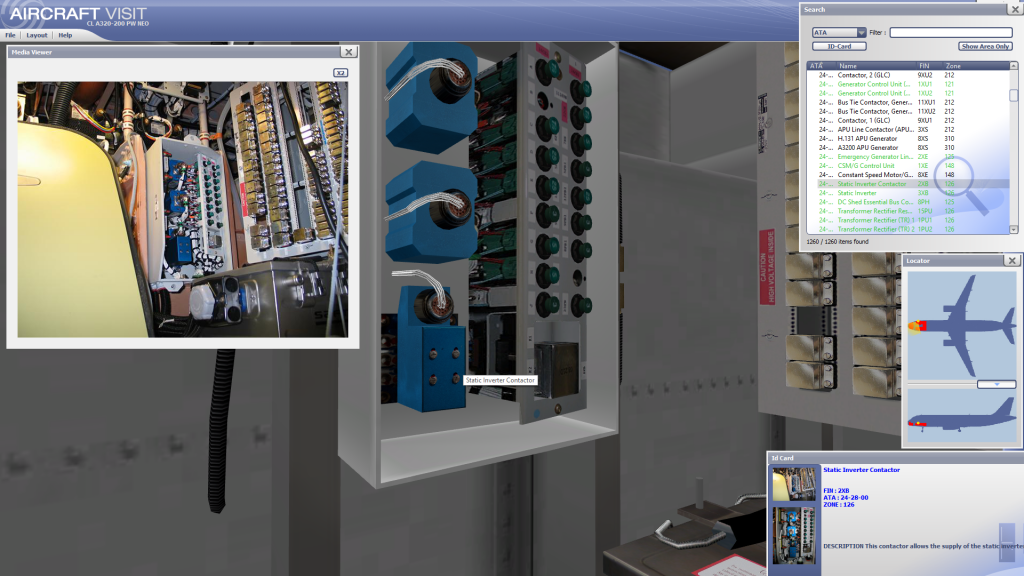

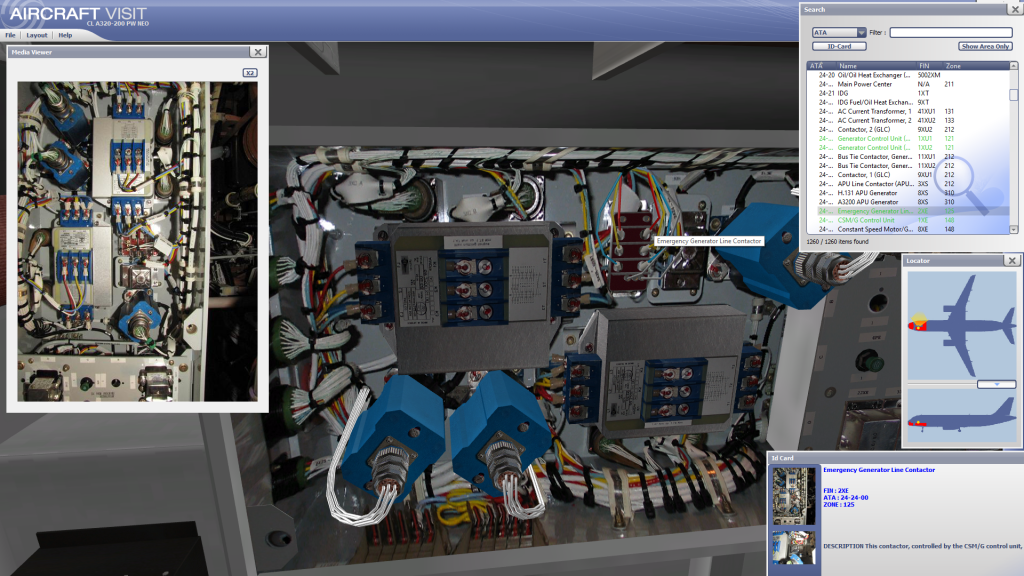

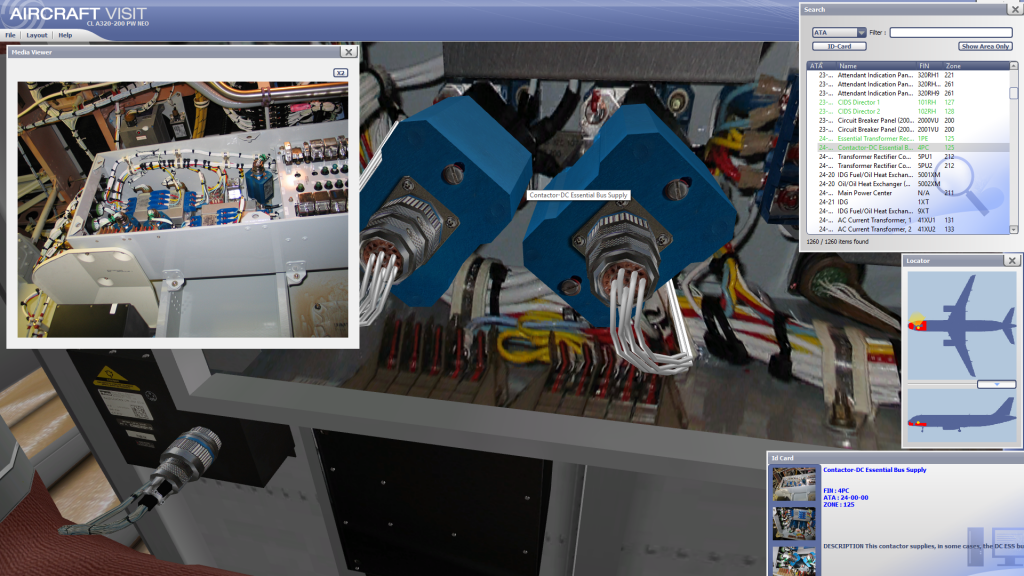

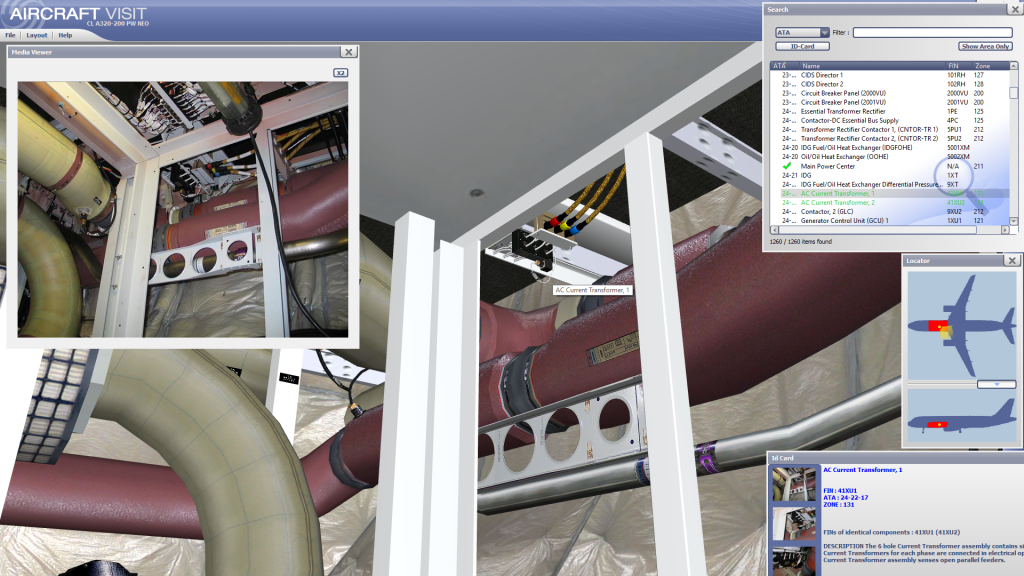

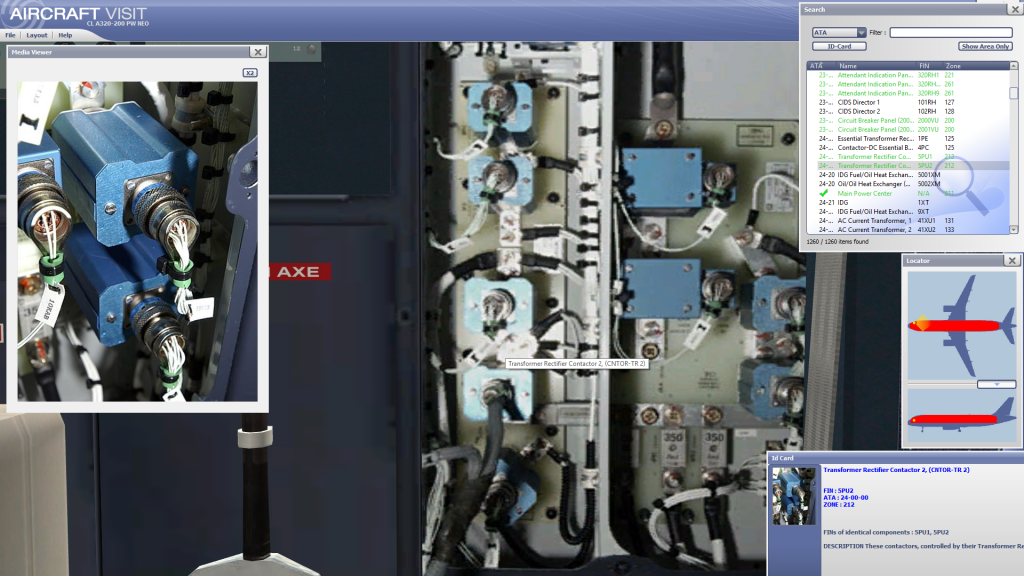

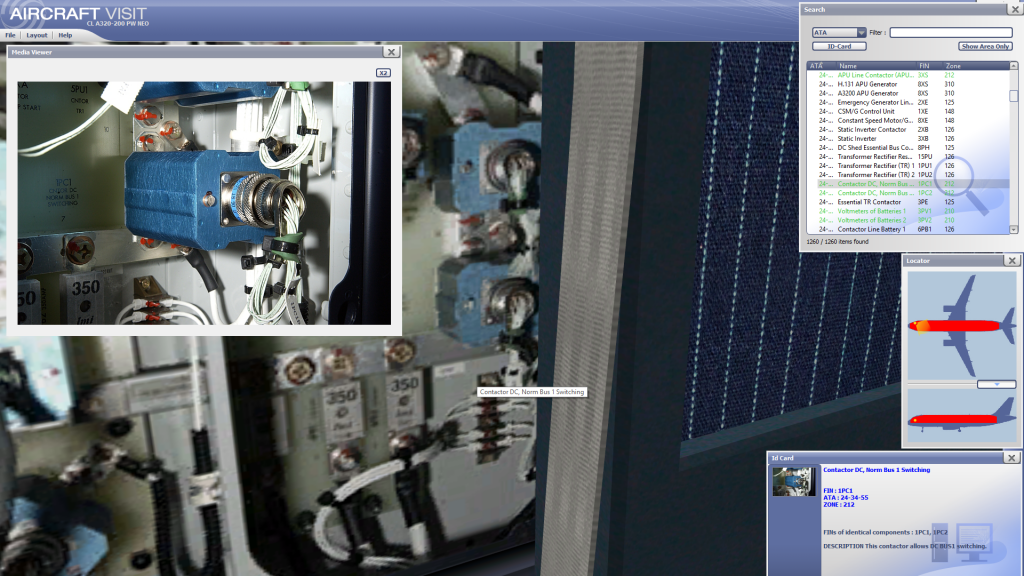

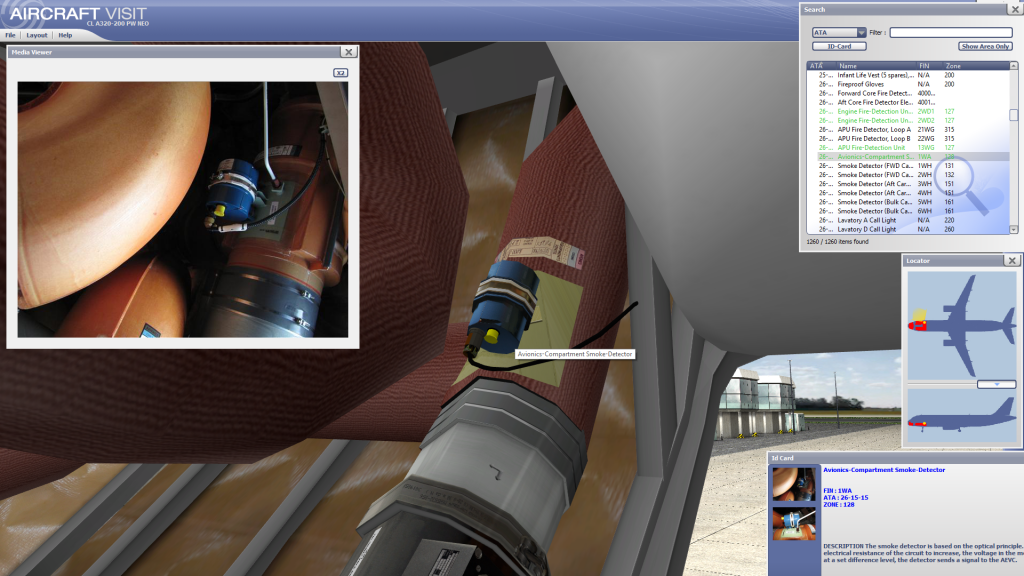

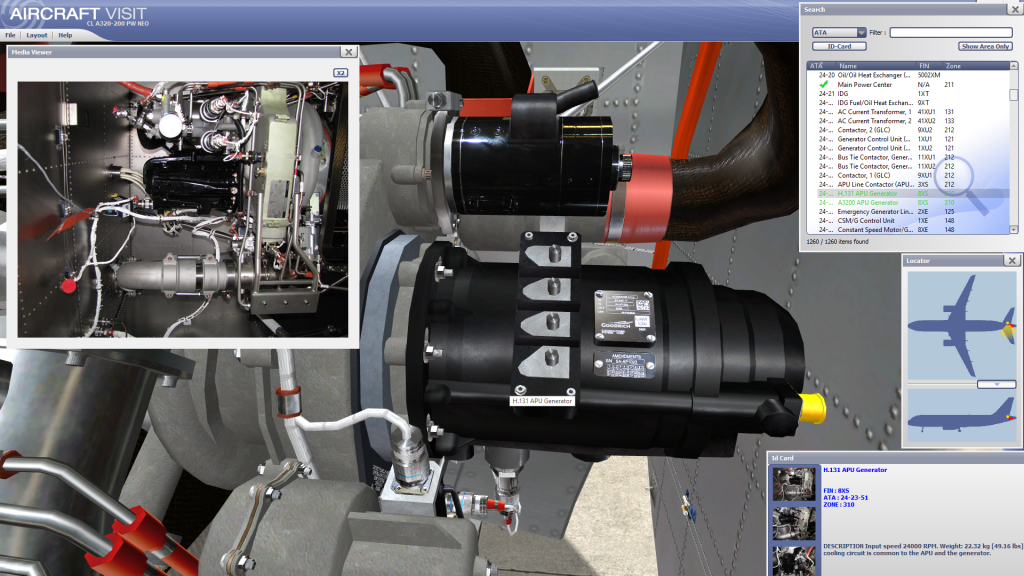

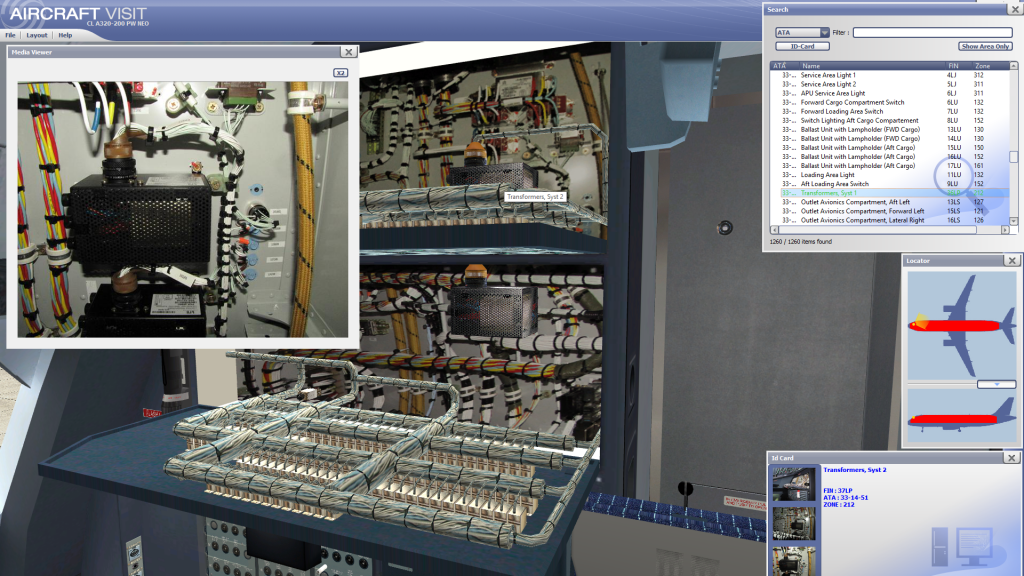

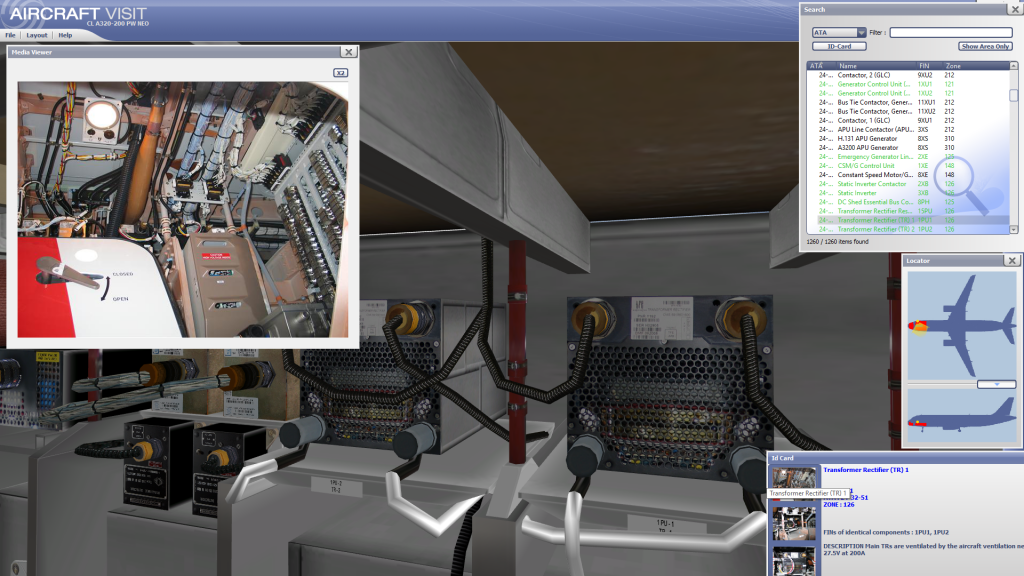

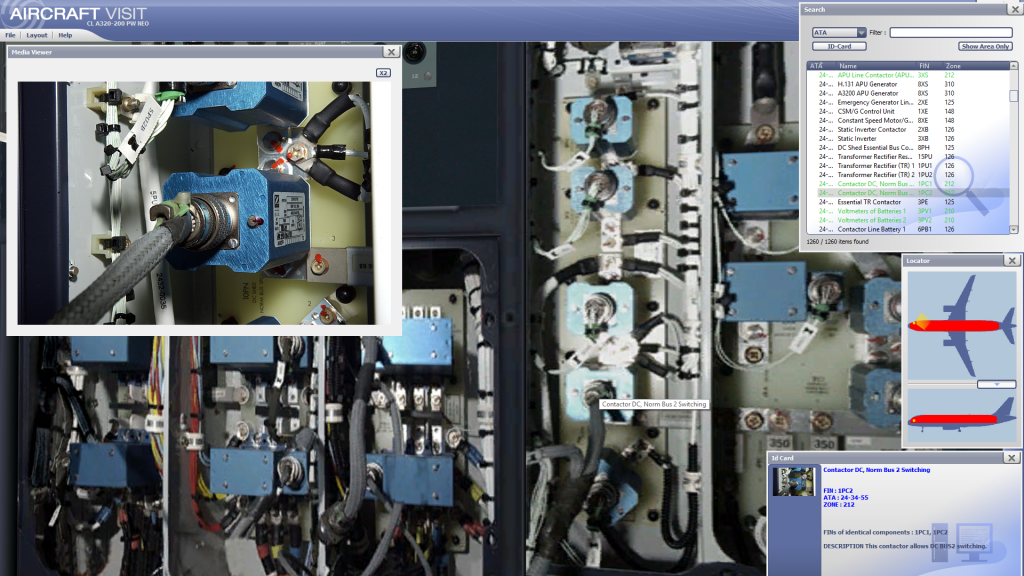

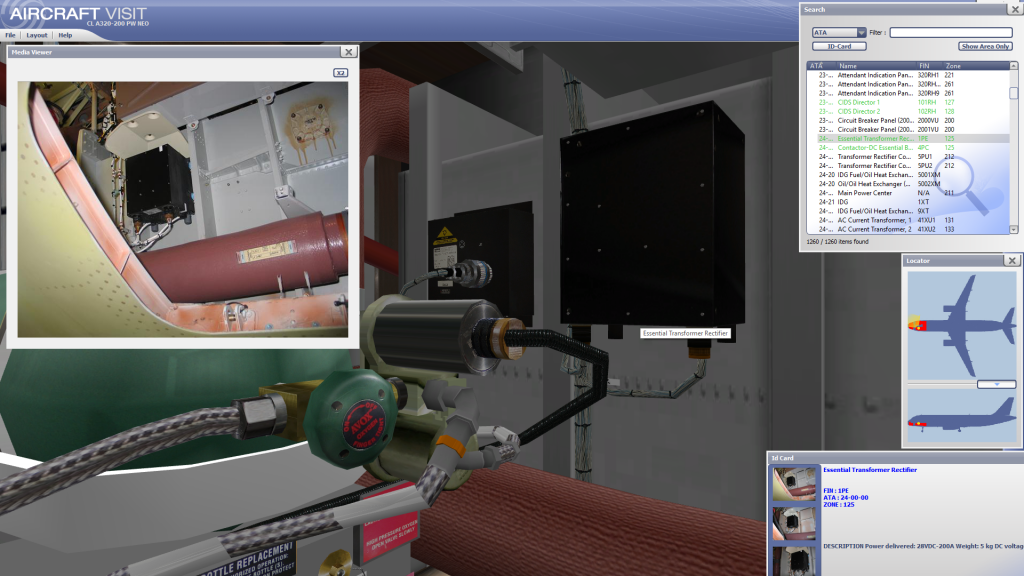

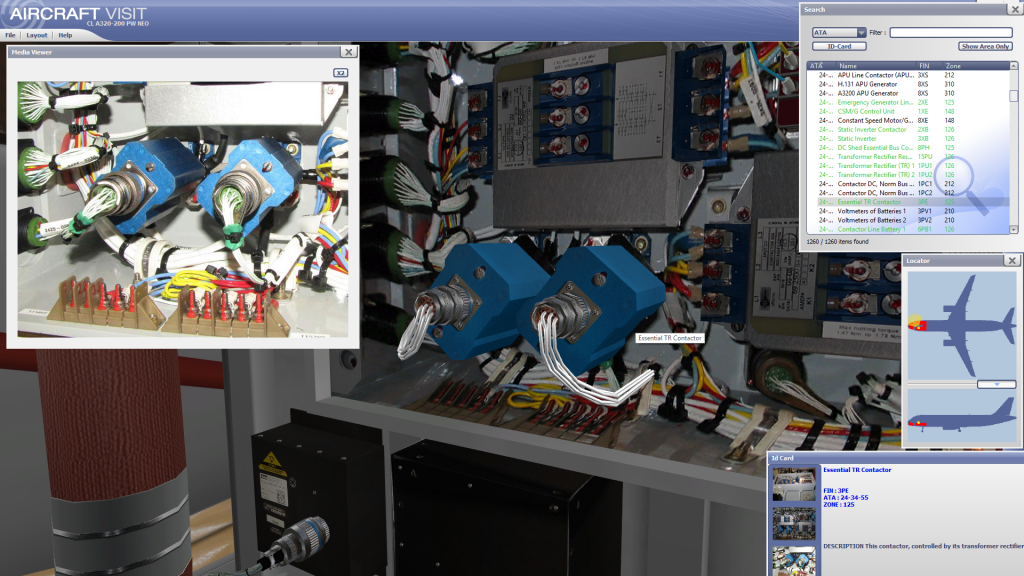

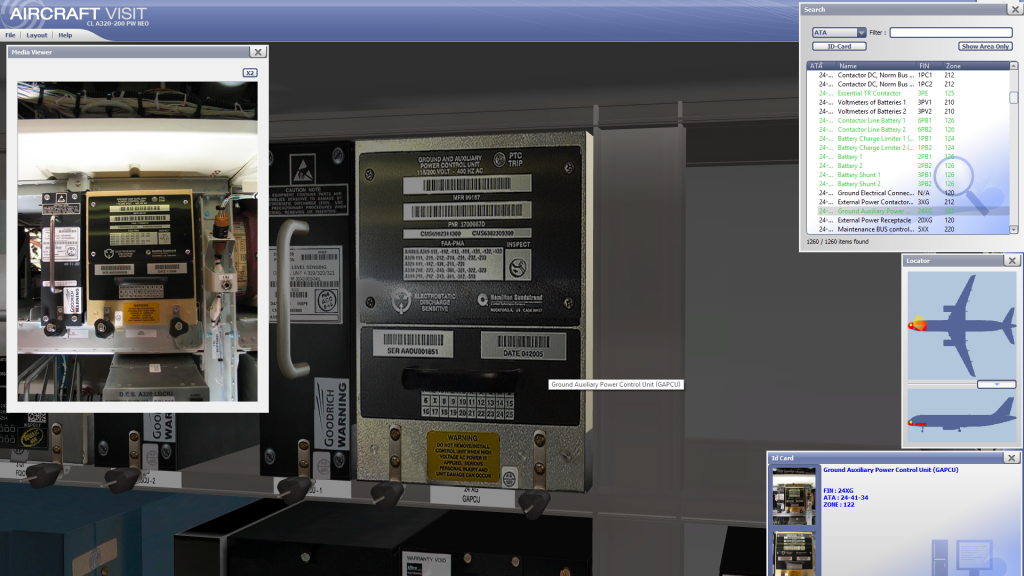

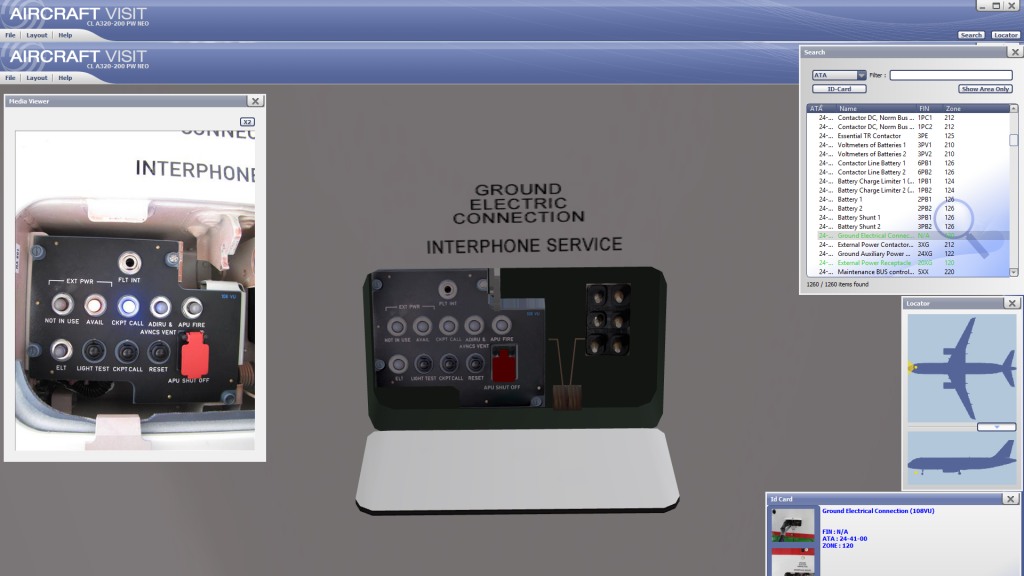

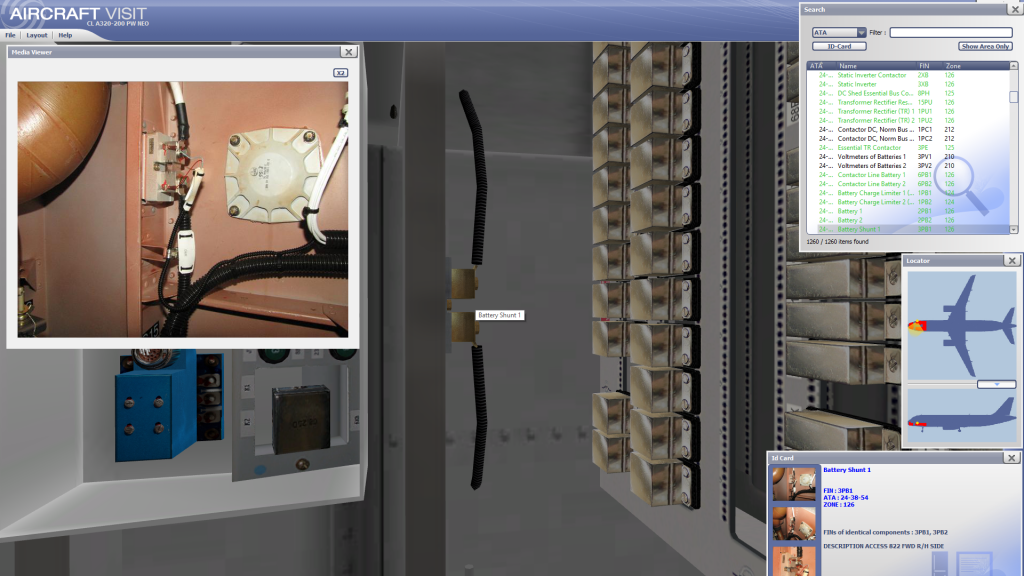

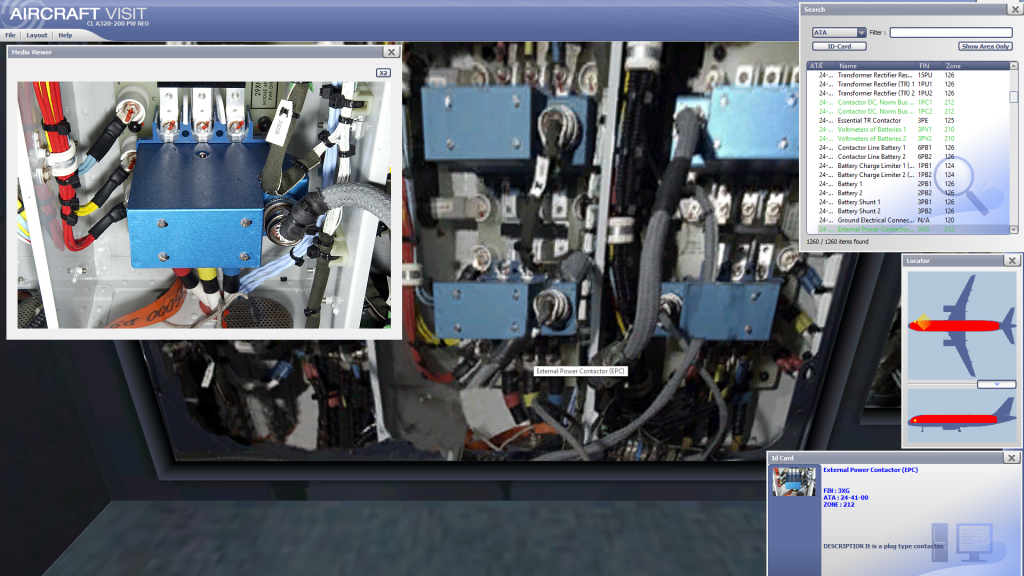

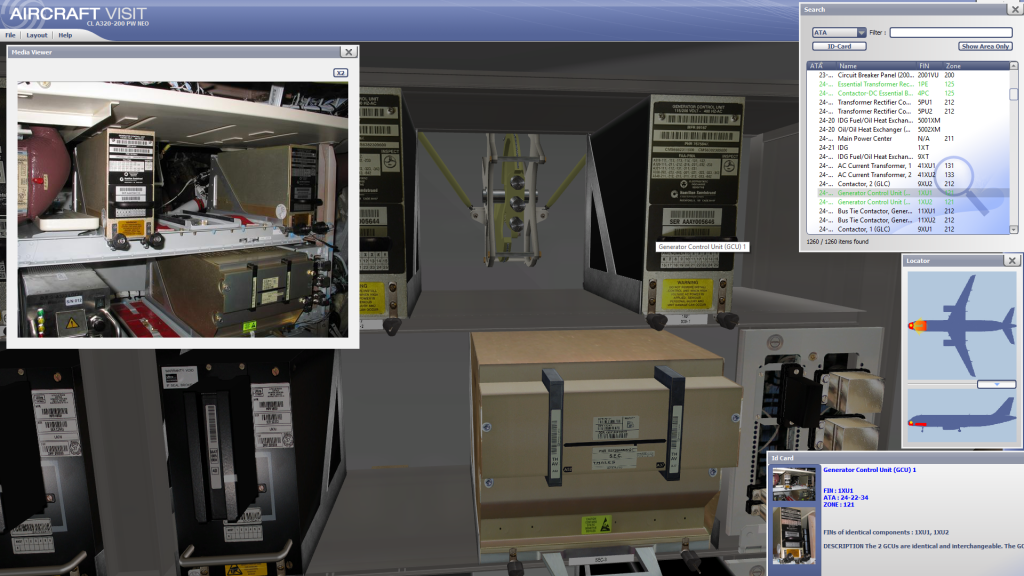

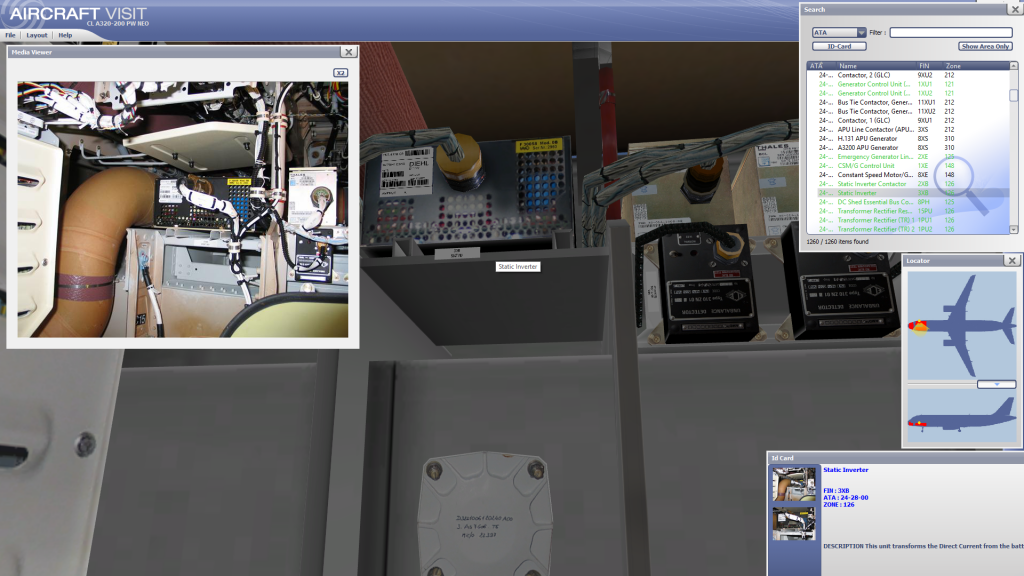

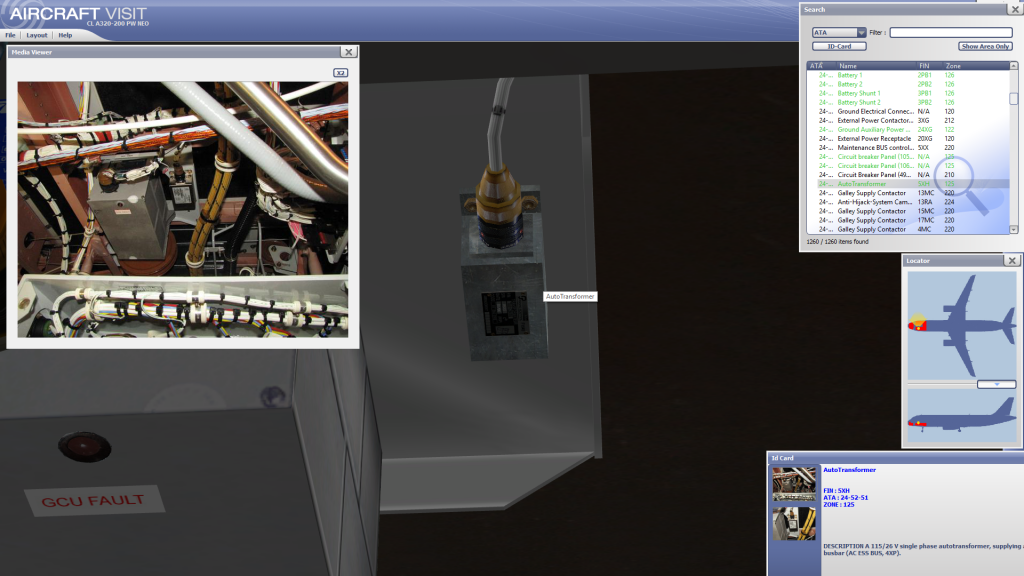

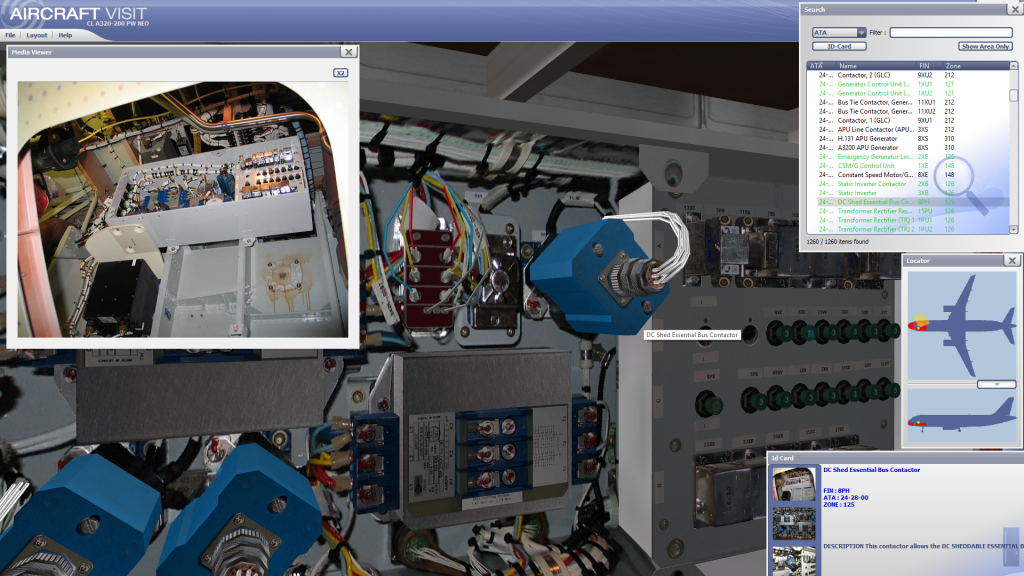

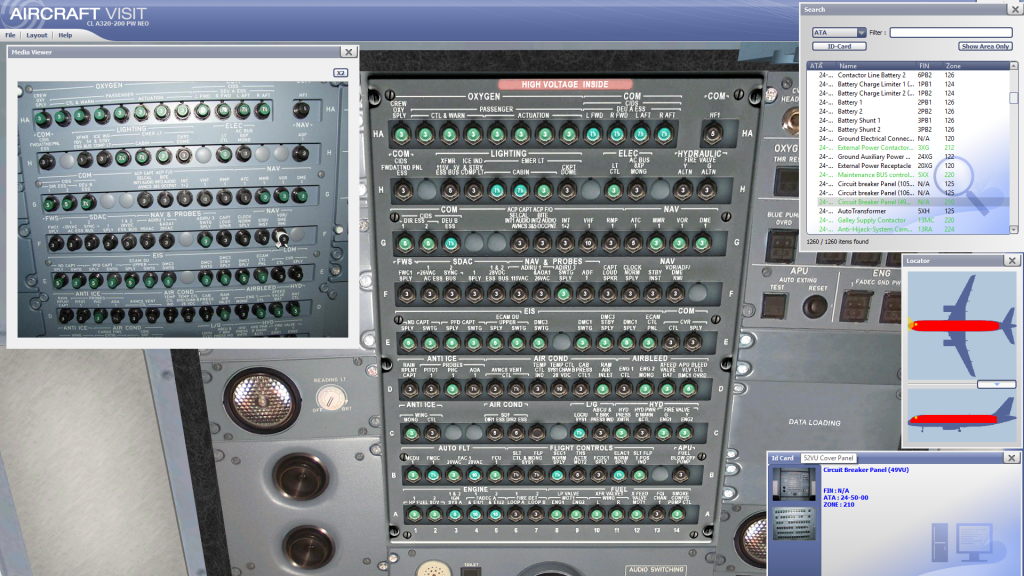

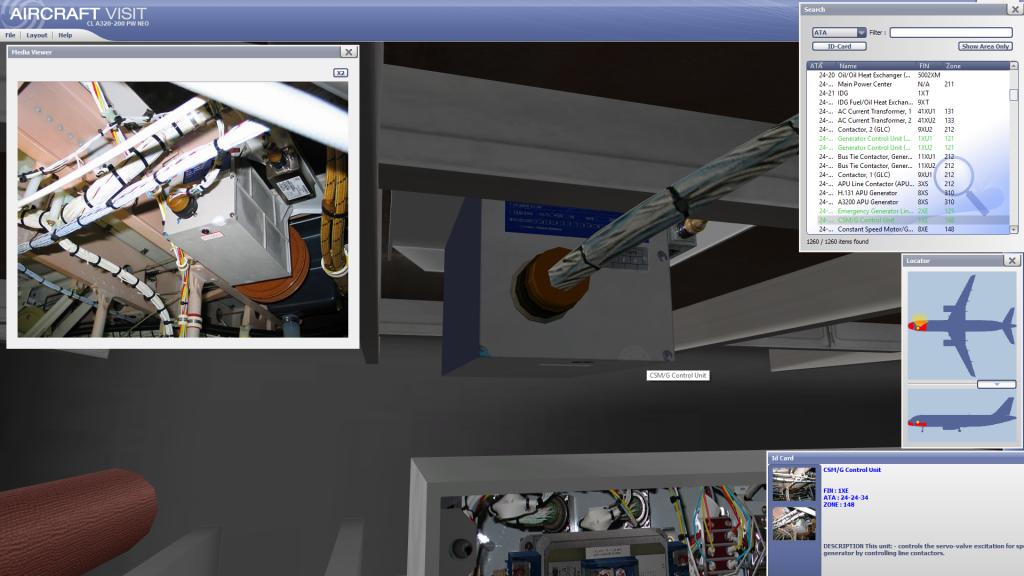

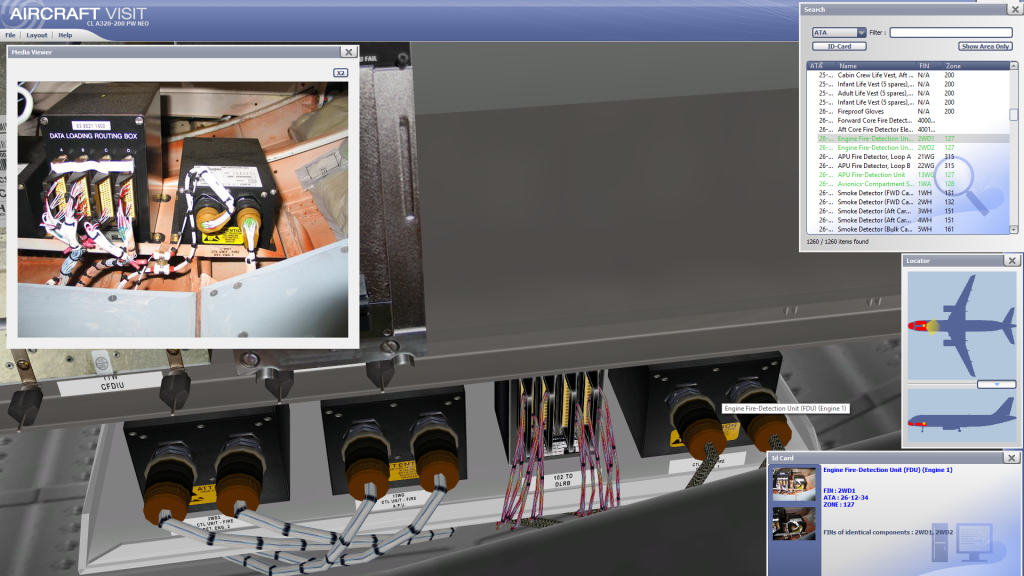

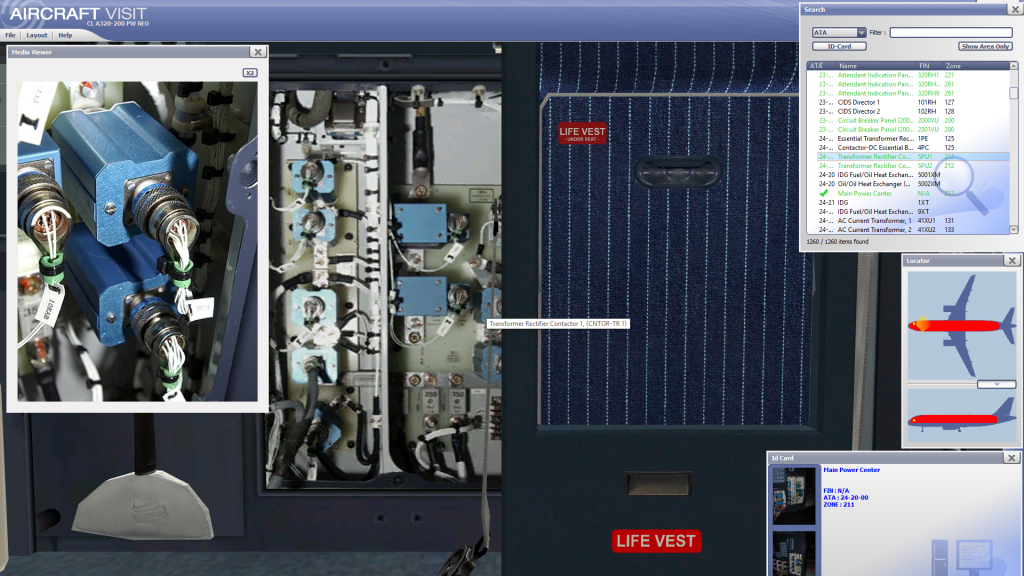

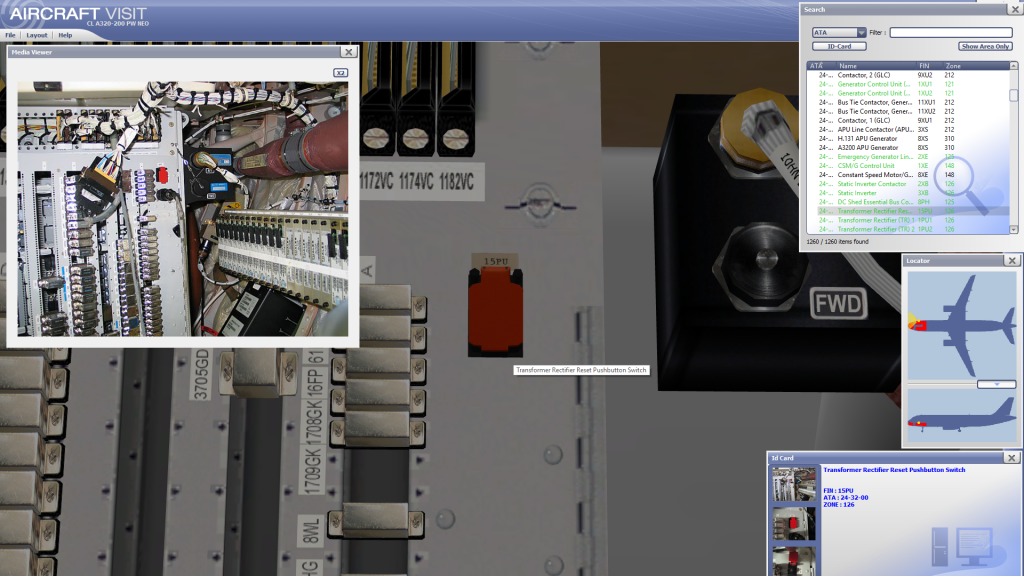

ATA24(Part Location) A3200 APU GEN 8XS AC CURRENT TRANSFORMER 1 41XU1 FWD CGO LH APU GEN 8XS AUTO TRANSFORMER 5XH LH ENE(812) AVI SMK DET 1WA LH ENE(812) BAT 1 2 RH ENE(822) BAT LINE CONTACTOR 6PB1 RH ENE(822) BAT SHUNT 1 3PB1 RH ENE(822) BCL 1 2 1PB1 RH ENE(822) BTC1 2 APU GLC ETC 11XU1 CKPT F/O BACK CB PNL 105VU RH ENE(822) CB PNL 106VU LH ENE(812) CKPT OVHD CB PNL 49VU CONTACTOR DC ESS BUS 4PC CSM G 8XE CSM GCU 1XE LH ENE(812) DC NML BUS 1 SWTCHING CONTACTOR 1PC1 CKPT F/O BACK DC NML BUS 2 SWITHCH CONTACTOR 1PC2 CKPT F/O BACK DC SHED ESS BUS CONTACTOR 8PH LH ENE(812) ELAC SEC FCDC BACK ENE (824) EMER GEN LINE CONTACTOR 2XE LH ENE(812) ENG APU FDU 2WD1 2WD2 BACK ENE(824) EPC CONTACTOR 3XG CKPT F/O BACK ESS TR 1PE NOSE ENE(811) ESS TR CONTACTOR 2PE LH ENE(812) EXT PWR PNL 108VU GAPCU 24XG NOSE ENE(811) GCU1 1XU1 NOSE ENE(811) GLA SUPPLY CONTACTOR 13MC STATIC INVERTER CONTACTOR 2XB RH ENE(822) TR CONTACTOR 2 5PU2 CKPT F/O BACK TR RESET SW 15PU RH ENE(822) STATIC INVERTER CONTACTOR 2XB RH ENE(822) TR CONTACTOR 2 5PU2 CKPT F/O BACK TR RESET SW 15PU RH ENE(822) TR1 2 1PU RH ENE(822) TR1 CONTACTOR 5PU1 CKPT F/O BACK TRASNFORMERS SYS 1 2 37LP CKPT F/O BACK TRASNFORMERS SYS 2 37LP CKPT F/O BACK Post Views: 0
